Software Specifications – T-7700RU1
| Model Number | T-7700RU1 |
| Product Name | Broadcasting System Management Software |
| Category | System Management & Control Software (Server) |
| Architecture | B/S (Browser/Server) – Web-based management |
| Manufacturer | ITC / Tongfang |
| Warranty | 2-Year Comprehensive |
| Deployment | Control Center Server Installation (T-7700, T-7700A, t-7700h) |
| Remote Access | Web Login, Mobile APP (Android 8.0+ / iOS 8.0+) |
| Voice Exchange | Full-Duplex with Acoustic Echo Cancellation |

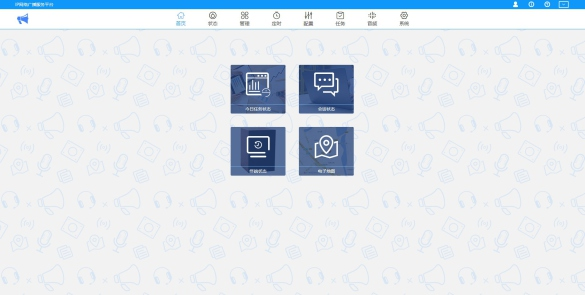

| Terminal Management | Centralized management of all IP audio terminals |
| Real-time Monitoring | IP address, online status, task status, volume level |
| Task Scheduling | Timed tasks, offline ringing, GPS-based timing |
| Fire Alarm Linkage | Integrated with T-7723 / T-7723B fire alarm interface |
| User Authority | Multi-level, role-based access control |
| Language Support | Multi-language interface |
| OS Compatibility | Windows Server 2008/2012/2016/2019/2022 |
| Call Strategies | Priority management, terminal linkage, zone grouping |
Software Overview – T-7700RU1
The T-7700RU1 is the core server software of the ITC T-7700 Series IP network audio system. Installed in the central control room, it acts as the primary platform for data exchange, system logic, and centralized management of all IP broadcasting and intercom terminals. It is the foundation upon which the entire T-7700 ecosystem operates.
Central Command
Unified control of all T-7700 devices: paging stations, IP speakers, amplifiers, decoders, and emergency intercoms.
B/S Architecture
Browser/Server design enables remote management from any PC, tablet or smartphone without client installation.
Mobile APP Ready
Native Android/iOS apps for on-the-go paging, intercom, TTS, and task scheduling.
System Architecture
- Core Server (T-7700RU1): Manages all data exchange, user authentication, and task scheduling.
- Web Management Console: Full-featured remote configuration via browser.
- Client Software (T-7700RL/T-7700RP): Optional sub-control workstations.
- Mobile Integration: T-7700PA (Android) and T-7700PA-iOS for field operators.
- Redundancy Ready: Compatible with T-7700SR hot backup server for mission-critical installations.
Target Applications
- Large-scale campuses (universities, hospitals)
- Transportation hubs (airports, railway stations)
- Smart city infrastructure (parks, tunnels, public squares)
- Industrial facilities and smart factories
- Government and corporate headquarters
Key Features – T-7700RU1
Management Capabilities
- ✓ Centralized device discovery and registration

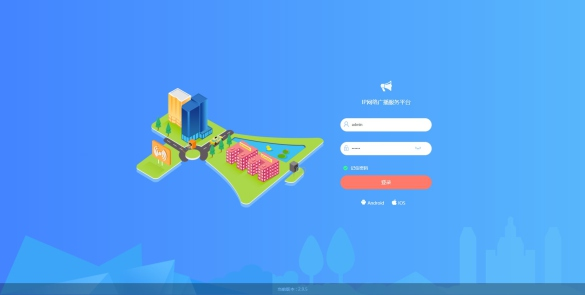

- ✓ Real-time dashboard: IP address, online/offline, task status
- ✓ Individual/group volume control and mute
- ✓ Role-based multi-user authority management
- ✓ Terminal firmware upgrade via network
- ✓ Export system logs and event history
Audio & Voice
- ✓ Full-duplex voice exchange with echo cancellation
- ✓ Real-time audio acquisition from server or client
- ✓ Text-to-speech (TTS) with multi-language engine
- ✓ MP3/WAV playback and music library management
- ✓ Voice prompt customization
Automation & Integration
- ✓ GPS-based precision timing for synchronized bells
- ✓ Offline ringing – terminals execute tasks without server
- ✓ Fire alarm linkage: 16/32 zone short-circuit input
- ✓ Call strategies and terminal linkage scenarios
- ✓ Integration with BMS via API / TCP‑IP
Mobile & Remote
- ✓ T-7700PA (Android/iOS) – full control via smartphone
- ✓ Web-based management – no client software required
- ✓ Multi-language web interface (EN, CN, ES, AR, etc.)
- ✓ SSL encryption for remote administration
- ✓ Scheduled task creation via mobile APP
Server Requirements
Optimized for ITC hardware controllers: T-7700 (i5/8GB/128G SSD), T-7700A (i7/256G SSD), or t-7700h (Xeon/32GB). Minimum: Core i5, 8GB RAM, 128GB SSD, Gigabit Ethernet. Windows Server 2008+.
System Compatibility – T-7700RU1
Supported ITC T-7700 Devices (Full List)
- Paging & Intercom: T-7702A, T-7702M, T-7700A, T-7700AN
- Decoders & Amps: T-7701, T-7701Z, T-7704, T-7700B Series (60W-650W), T-77240Z/T-77350Z/T-77500Z (8-zone)
- Wall Speakers: T-7705A, T-7705S, T-7705B, T-7707 Series, T-7707N2
- Outdoor/Column: T-7782, T-7784, T-7784H, T-7782PA (PoE), T-7782POEH
- Emergency: T-7710, T-7731 (Ex-proof), T-7732, T-7730/T-7730P
- Accessories: T-7713 (RS232/IP), T-7720UH wireless mic, T-7770 audio collector, T-7772 touch panel
Software & System Compatibility
- Server OS: Windows Server 2008 R2 / 2012 / 2016 / 2019 / 2022
- Client OS: Windows 7/8/10/11, Linux (web), macOS (web)
- Web Browsers: Chrome, Firefox, Edge, Safari
- Mobile APP: Android 8.0+, iOS 8.0+ (T-7700PA / T-7700PA-iOS)
- Network: TCP/IP, UDP, HTTP, DHCP, static IP recommended
Integration Modules
- T-7700SR – Hot backup / redundancy server
- T-7723 / T-7723B – 16/32ch fire alarm interface
- T-0778P – Patrol inspection terminal
- T-100PT – Portable 4G/WiFi inspection device
Multi-User & Authority Management
T-7700RU1 supports unlimited user accounts with granular permissions (broadcast, intercom, task edit, system config). Ideal for large organizations with distributed administration.
