T-7700RT | Remote Sub-Control Software | ITC T-7700

Software Specifications – T-7700RT

Model Number	T-7700RT
Product Name	Remote Sub-Control Client Software
Category	System Management & Control Software (Client)
Architecture	Client/Server (Remote login via LAN/WAN)
Manufacturer	ITC / Tongfang
Warranty	2-Year Comprehensive
Deployment	Remote PC / Laptop / Workstation
Connection	TCP/IP, UDP, HTTP (server IP:port)
Remote Access	LAN, WAN, VPN, Internet (secure)
Core Functions	Remote audio playback, real-time acquisition, intercom, broadcast, TTS
Text-to-Speech	Integrated multi-language TTS engine
Terminal Monitoring	Real-time status: online/offline, volume, task progress
Music Management	Playback, upload playlist, task scheduling
User Authentication	Login credentials, server authority verification
Audio Acquisition	LINE IN, microphone, PC sound card
File Formats	MP3, WAV, WMA, FLAC, OGG
OS Compatibility	Windows 7, 8, 10, 11; Windows Server 2008/2012/2016/2019/2022
Language Support	Multi-language UI
Relationship	Client module for T-7700RU1/RU2/RU3 and T-7700RP

Software Overview – T-7700RT

The T-7700RT is a full-featured remote sub-control client for the ITC T-7700 Series IP network audio system. It is designed for operators in satellite control rooms, security desks, administrative offices, or any location with network connectivity to the central server. Unlike the web-based management interface, T-7700RT is a dedicated Windows application that provides the complete set of broadcasting and intercom controls with optimized performance for live audio acquisition and real-time monitoring.

Live Remote Paging

Broadcast live audio from your PC's microphone or LINE-IN to any zone or terminal group – instantly.

Text-to-Speech

Type a message and broadcast it immediately with natural-sounding voices. Supports multiple languages.

Terminal Monitoring

View real-time status of all IP speakers, decoders, and intercoms. Remotely adjust volume and diagnose issues.

Ideal Use Cases

School Campuses: Individual building administrators manage their own zones.
Corporate Offices: Reception desk paging and background music control.
Hospitals: Remote emergency announcements from nursing stations.
Retail Chains: Centralized paging to multiple store locations.
Transportation Hubs: Off-site paging for parking lots and remote gates.
Emergency Response: Authorized personnel trigger alerts from field laptops.

Difference between T-7700RT and T-7700RL

T-7700RT and T-7700RL are both remote client software. The RT variant is the standard remote client; RL is an enhanced version with additional programmable hotkeys and advanced monitoring layouts. Both are compatible with the same server platforms.

Key Features – T-7700RT

Broadcasting & Audio

✓ Live audio acquisition: Broadcast from microphone, LINE-IN, or sound card
✓ File playback: Play MP3/WAV files directly to terminals or zones
✓ Full-duplex intercom: Two-way communication with paging stations and help points
✓ Text-to-Speech: Multi-language TTS with adjustable speed and pitch
✓ Music library management: Upload, organize, and schedule playlists

Terminal & System Control

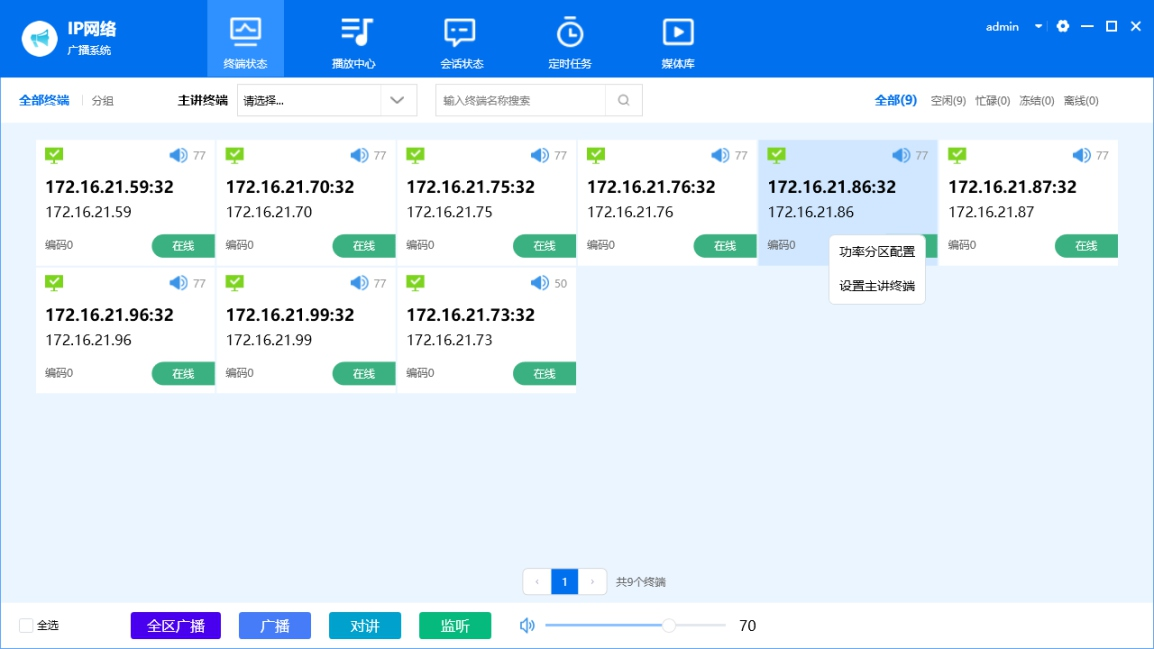

✓ Real-time terminal status: View IP address, online/offline, volume, task state
✓ Remote volume adjustment: Individual or group volume control
✓ Task monitoring: View current and scheduled tasks, execution logs
✓ Emergency paging: Highest priority override for urgent announcements
✓ Fire alarm status view: Monitor alarm zones (read-only)

Remote Accessibility

✓ LAN & WAN connectivity: Works across VPNs and the internet
✓ Auto-reconnect: Automatically re-establishes connection on network interruption
✓ Low bandwidth mode: Optimized for limited WAN connections
✓ Multi-server support: Can connect to different servers (profile save)
✓ Secure authentication: Encrypted login credentials

Usability & Interface

✓ Intuitive GUI: Familiar layout similar to main console
✓ Customizable zone groups: Save frequently used terminal groups
✓ Drag-and-drop tasks: Easy playlist creation and scheduling
✓ Multi-language UI: English, Chinese, Spanish, Arabic, French, more
✓ Single sign-on: Inherits server authority settings

Client Requirements

Windows PC with 1.5GHz processor, 2GB RAM, 100Mbps network interface. Sound card required for audio acquisition. Compatible with Windows 7 through Windows 11 and Windows Server 2008-2022. No additional license server required; authenticated by T-7700RU1/RU2/RU3 or T-7700RP.

System Compatibility – T-7700RT

Server Compatibility

T-7700RU1 – Standard Server
T-7700RU2 – Advanced Server
T-7700RU3 – Ultimate AI Server
T-7700RP – Broadcasting Management Software
T-7700SR – Hot Backup Server (via primary)
Any server running T-7700RU series or T-7700RP

Supported Terminals (Remote Management)

T-7702A / T-7702M Paging Microphones
T-7700A / T-7700AN Intercom Stations
T-7701 / T-7701Z / T-7704 Decoders
T-7700B Series IP Amplifiers (all power levels)
T-7705A / T-7705S / T-7705B Wall Speakers
T-7707 Series Active IP Speakers
T-7782 / T-7784 Column Speakers
T-7710 / T-7731 Emergency Intercoms

Client OS Compatibility

Windows 7 (32/64-bit) SP1
Windows 8 / 8.1
Windows 10 (all editions)
Windows 11 (22H2+)
Windows Server 2008 R2 – 2022
.NET Framework 4.7.2 or higher required

Network & Protocols

TCP/UDP ports: configurable (default 8080, 8088)
VPN support: OpenVPN, IPsec, WireGuard
Proxy support: HTTP, SOCKS
Bandwidth: 128kbps minimum for audio

Language Support

English, Simplified Chinese, Traditional Chinese
Spanish, French, German, Arabic, Russian
Custom language packs available

Integration with T-7700 Ecosystem

Fully compatible with T-7723/T-7723B Fire Alarm Interface (status view)
Supports T-7770 IP Audio Collecting Terminal (remote trigger)
Can be used alongside T-7700PA mobile apps
T-0778P Patrol Terminal integration (view patrol status)

User Authority Enforcement

T-7700RT respects all user permissions defined on the server. Administrators can restrict remote clients to specific zones, functions (e.g., no TTS), or time windows. Ideal for multi-tenant facilities and delegated management.
