T-7700RP | Broadcasting Management Software | ITC T-7700

Software Specifications

Model Number	T-7700RP
Product Name	Broadcasting System Management Software
Category	System Management & Control Software
Architecture	B/S (Browser/Server)
Manufacturer	ITC / Tongfang
Warranty	2-Year Comprehensive
Deployment	Control Center Server Installation
Remote Access	Web Login, Mobile APP (Android/iOS)
Voice Exchange	Full-Duplex with Echo Cancellation
Terminal Management	Centralized Management of All Audio Terminals
Real-time Monitoring	IP Address, Online Status, Task Status, Volume
Task Scheduling	Timed Tasks, Offline Ringing
Fire Alarm Linkage	Integrated Fire Interface Support
User Authority	Multi-Level User Management
Timing Synchronization	GPS-Based Timing
Language Support	Multi-Language Interface
OS Compatibility	Windows Server 2008+

Software Overview

The T-7700RP is the core broadcasting system management and control software installed in the control center. It serves as the central platform for data exchange, system operation, and comprehensive terminal management for the entire ITC T-7700 Series IP network audio system.

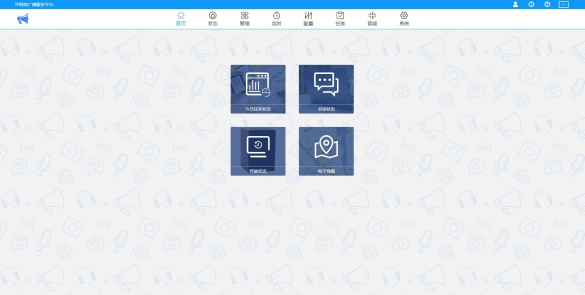

Centralized Management

Unified control of all audio terminals including paging MICs, intercom stations, broadcast zones, and fire alarm interfaces.

B/S Architecture

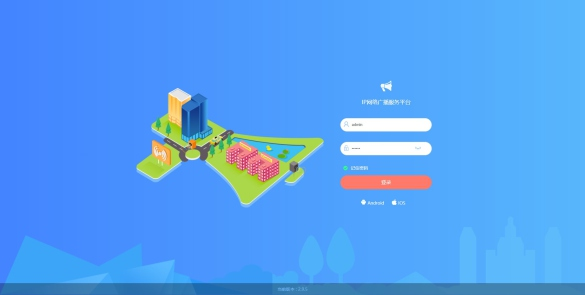

Browser/Server structure enables web-based remote management from any device with network access - no client software required.

Full-Duplex Voice

Advanced full-duplex voice exchange with echo cancellation for clear, natural two-way communication across the entire network.

System Architecture

Core Platform: Central server for data exchange and system operation
Web Management: Browser-based remote access and configuration
Mobile Integration: Android/iOS apps for on-the-go management
Terminal Linkage: Intelligent call strategies and device coordination
Redundancy Ready: Compatible with T-7700SR hot backup server

Applications

Schools & University Campuses
Hospitals & Healthcare Facilities
Airports & Transportation Hubs
Smart Cities & Public Spaces
Industrial Facilities & Factories
Corporate Office Buildings

Key Features

Management Capabilities

✓ Centralized management of all audio terminals
✓ Real-time IP address and online status display
✓ Task status monitoring and volume control
✓ Multi-user authority management
✓ Terminal linkage and call strategies

Voice & Audio

✓ Full-duplex voice exchange
✓ Acoustic echo cancellation
✓ Real-time audio acquisition
✓ Text-to-speech conversion
✓ Music playback management

System Integration

✓ Fire alarm system linkage
✓ GPS-based timing synchronization
✓ Offline ringing capability
✓ Multi-language interface support
✓ Mobile APP compatibility (Android/iOS)

Task Management

✓ Scheduled timed broadcasting tasks
✓ Remote audio playback
✓ Real-time paging and intercom
✓ Terminal monitoring and diagnostics
✓ Task priority management

Software Requirements

Compatible with Windows operating systems (Win7 – Server2008+). B/S architecture enables access from any modern web browser without additional client installation.

System Compatibility

Supported ITC T-7700 Devices

T-7702A / T-7702M Paging Microphones
T-7700A / T-7700AN Intercom Stations
T-7701 / T-7701Z IP Decoders
T-7700B Series Power Amplifiers
T-7705A / T-7707 Series Wall Speakers
T-7782 / T-7784 Outdoor Column Speakers
T-7710 / T-7731 Emergency Intercoms
T-7723 / T-7723B Fire Alarm Interfaces

Software Compatibility

Server OS: Windows Server 2008/2012/2016/2019
Client OS: Windows 7/8/10/11
Web Browsers: Chrome, Firefox, Edge, Safari
Mobile: Android 8.0+, iOS 8.0+
Network: TCP/IP, UDP, HTTP, DHCP

Integration Capabilities

Fire Alarm System Integration
BMS / Building Management Systems
GPS Timing Synchronization
Third-party API Integration (Custom)

System Requirements

Minimum Server

Intel Core i5, 8GB RAM, 128GB SSD, Gigabit Ethernet

Recommended Server

Intel Xeon, 16GB+ RAM, 256GB+ SSD, Dual NIC

Network

100Mbps/1Gbps LAN, Static IP Recommended
