ITC T-7700 SERIES

T-7700RL

Broadcasting System Management & Control Software

B/S Architecture • Web Remote Management • Full-Duplex Voice Exchange

CLIENT/SERVER SUB-CONTROL
T-7700RL Software - Remote Management Client

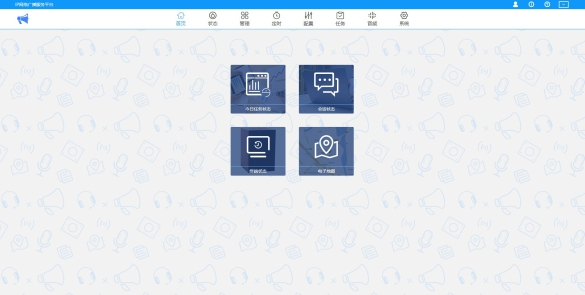

T-7700RL Dashboard

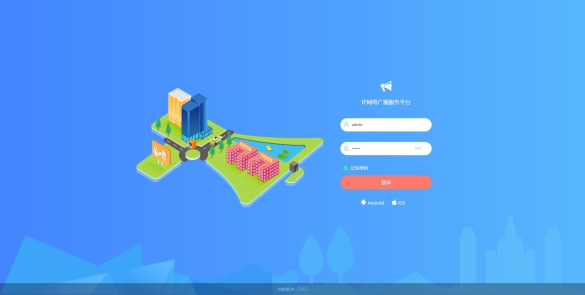

T-7700RL Remote Login
ITC T-7700

Remote Sub-Control Software

T-7700RL (Client Software)

LAN/WAN Remote
Real-time Acquisition
Remote Playback
Text-to-Speech
Terminal Monitoring
Music Task Creation

Professional sub-control software for remote login via LAN/WAN. Enables distributed broadcasting management, real-time audio acquisition, intercom, and terminal monitoring from any authorized PC.

Software Specifications – T-7700RL

Model NumberT-7700RL
Product NameRemote Sub-Control Client Software
CategorySystem Management & Control Software (Client)
ArchitectureClient/Server (Remote login via LAN/WAN)
ManufacturerITC / Tongfang
Warranty2-Year Comprehensive
DeploymentRemote PC / Workstation
Remote AccessLAN, WAN, VPN
Core FunctionsRemote audio playback, real-time acquisition, intercom, broadcast
Text-to-SpeechIntegrated TTS engine
Terminal MonitoringReal-time status, volume adjustment, diagnostics
Music ManagementPlayback, task creation, schedule binding
User AuthenticationLogin credentials, authority verification
OS CompatibilityWindows 7, 8, 10, 11; Windows Server 2008+
Network ProtocolTCP/IP, UDP, HTTP
Relationship to T-7700RPClient module of Broadcasting System Management suite

Software Overview

The T-7700RL is the professional remote sub-control client software for the ITC T-7700 Series IP network audio system. Designed for authorized operators and sub-control rooms, it enables full-featured remote management of the broadcasting system via LAN or WAN. It extends the reach of the central T-7700RP server, allowing distributed paging, intercom, and audio playback from any location with network connectivity.

WAN/LAN Remote

Login to the broadcasting server from anywhere via local network or secure WAN/VPN connection.

Real-Time Acquisition

Capture live audio from local LINE IN or microphone and broadcast instantly to selected zones.

Task & Terminal Control

Create music tasks, monitor terminal status, adjust volume, and manage broadcasts remotely.

Ideal Applications
  • Satellite control rooms: Security desks, reception areas, branch offices
  • Campus-wide distribution: Individual building administrators managing their own zones
  • Remote paging: Announcements from off-site management offices
  • Emergency response: Authorized personnel triggering alerts via laptop
System Relationship

T-7700RL works in conjunction with T-7700RP (server) and is part of the comprehensive management software suite. It inherits all security protocols and user authority settings from the central server.

Key Features – T-7700RL

Remote Broadcasting
  • ✓ Live audio acquisition and broadcast from remote PC
  • ✓ Play MP3/WAV files directly to any terminal or zone
  • ✓ Full-duplex intercom with paging stations
  • ✓ Text-to-speech conversion with multiple voice options
  • ✓ Schedule and execute timed playback tasks
Terminal Management
  • ✓ Real-time display of IP address, online/offline status
  • ✓ Remote volume adjustment per device
  • ✓ View task execution status and logs
  • ✓ Monitor speaker/intercom health
  • ✓ Linkage with fire alarm interface (status view)
Usability & Integration
  • ✓ Intuitive GUI – similar to main control console
  • ✓ Multi-language user interface
  • ✓ Drag-and-drop music task creation
  • ✓ User authority management (inherited from server)
  • ✓ Auto-reconnect on network interruption
Advanced Capabilities
  • ✓ Supports dual-screen monitoring
  • ✓ Customizable terminal groups and zones
  • ✓ Emergency paging override (highest priority)
  • ✓ Voice prompt confirmation for critical actions
  • ✓ Low bandwidth mode for WAN connections
Client Requirements

Compatible with Windows 7/8/10/11 and Windows Server 2008/2012/2016/2019. 1GHz processor, 2GB RAM, 100Mbps network interface. No additional license server required – authenticated by T-7700RP server.

System Compatibility & Integration

Supported T-7700 Server
  • T-7700RP – Broadcasting Management Server
  • T-7700SR – Hot backup server (redundancy)
  • T-7700RU1/T-7700RU2/T-7700RU3 – Core server variants
Managed Terminals (Partial List)
  • T-7702A / T-7702M Paging Microphones
  • T-7700A / T-7700AN Intercom Stations
  • T-7701 / T-7701Z / T-7704 Decoders
  • T-7700B Series Amplifiers
  • T-7705A / T-7707 Series IP Speakers
  • T-7782 / T-7784 Column Speakers
  • T-7710 / T-7731 Emergency Help Points
Software Compatibility
  • Client OS: Windows 7/8/10/11 (32/64-bit)
  • Server OS: Windows Server 2008 R2 – 2022
  • Network: 100Mbps/1Gbps LAN, WAN with VPN recommended
  • Audio Formats: MP3, WAV, WMA, OGG
  • TTS Languages: Multi-language support
Integration & Accessories
  • T-7720 / T-7720UH Wireless Remote Control
  • T-7770 IP Audio Collecting Terminal
  • T-7723 Fire Alarm Interface
  • T-7772 Capacitive Touch Volume Control
  • T-100PT Portable Mobile Terminal
Multi-User Authority

T-7700RL respects centralized user permissions set by the T-7700RP administrator. Access to specific functions (paging, TTS, terminal groups) can be restricted per login. Ideal for multi-tenant buildings or campuses with distributed control.
