The central intelligence of your IP audio and intercom system. From industrial touch-screen controllers to enterprise-grade dual Xeon servers.
Three hardware tiers designed for different deployment scales, plus enterprise software redundancy. All models run the same T-7700RP management software.
All-in-one touch-screen controller for standard deployments. 17.3" capacitive touch, Core i5, 8GB RAM, 128G SSD.
Enhanced processing with redundancy features. Core i7, 256G SSD, dual NIC failover, active-standby ready.
Dual Xeon processing for 2500+ endpoints. IPMI remote management, hot-swap redundant PSU, wide temperature.
Dual-system redundancy for mission-critical environments. Automatic switchover on main server failure.
Core platform software for data exchange, terminal management, and system operation. B/S architecture, web remote.
Sub-control software for remote login via LAN/WAN. Remote audio playback, real-time acquisition, intercom.
Select the right control platform for your deployment scale and reliability requirements.
| Model | T-7700 | T-7700A | t-7700h |
|---|---|---|---|
| Form Factor | 4U Rack / Desktop, 17.3" Touch | 4U Rack / Desktop, 17.3" Touch | 2U Rackmount, Headless |
| Processor | Intel Core i5 | Intel Core i7 | Dual Intel Xeon E5-2643V2 |
| Memory | 8GB DDR4 | 16GB DDR4 | 32GB DDR3 ECC |
| Storage | 128GB SSD | 256GB SSD | 1TB HDD + 128GB SSD |
| Network | Dual Gigabit LAN | Dual Gigabit LAN (Redundant) | Dual Gigabit + Dedicated IPMI |
| Serial Ports | 6x RS232 | 4x RS232, 2x RS232/422/485 | 2x RS232 (via IPMI) |
| USB Ports | 8x USB (4x 3.0, 4x 2.0) | 10x USB (6x 3.0, 4x 2.0) | 10x USB (4x 3.0, 6x 2.0) |
| Redundancy Features | Auto power-on, short-circuit boot | Dual NIC failover, active-standby ready, recording storage | Hot-swap PSU, hot-swap fans, RAID, IPMI, active-standby ready |
| Remote Management | Windows RDP, VNC | Windows RDP, VNC | IPMI 2.0 (KVM, virtual media, SNMP) |
| Operating Temperature | 0°C – 40°C | 0°C – 45°C | -5°C – 55°C |
| Max Endpoints | 500 | 1,000 | 2,500+ |
| Ideal For | Schools, retail, office buildings | Hospitals, corporate campuses, airports | Large-scale transport, smart cities, defense |
All T-7700 series controllers support T-7700SR hot backup software. Deploy in active-standby pairs for 99.999% availability. Automatic failover in under 300 milliseconds – no audio dropout, no lost calls. Ideal for emergency communication, healthcare, and transportation systems.
All hardware controllers run the same T-7700RP/RU software suite. Choose your hardware based on scale, then deploy consistent software features across your entire system.
Enterprise Edition
Unlimited endpoints, advanced recording, multi-server clustering, API access. For t-7700h and large deployments.
Professional Edition
Up to 1,000 endpoints, full intercom, paging, scheduling, fire linkage. For T-7700A and mid-scale sites.
Standard Edition
Up to 500 endpoints, core broadcasting, intercom, timed tasks. For T-7700 and small to medium installations.
All editions include T-7700PA for Android/iOS. View terminal status, initiate broadcast/intercom, adjust volume, create music tasks, and text-to-speech from your smartphone.
Centralized control, distributed intelligence.

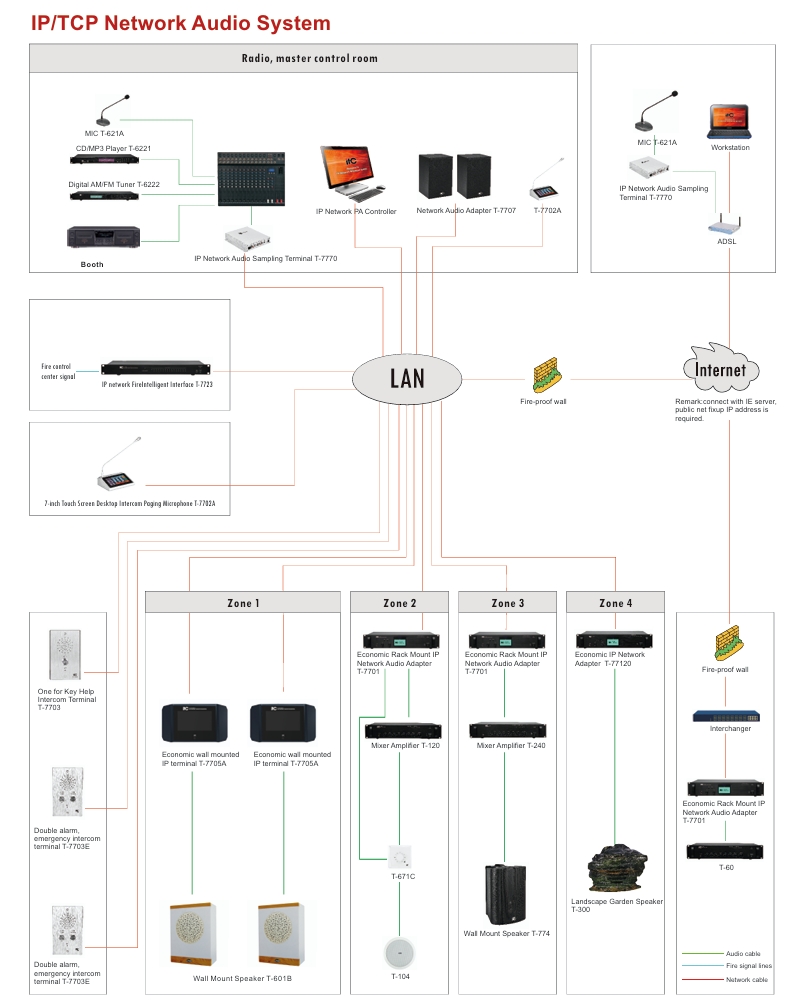

The T-7700 series controllers serve as the central brain of your IP audio network. They run the T-7700RP management software, maintain the SQL database of terminals and users, process scheduling, and handle fire alarm integration.
Decoders (T-7701, T-7704) and IP amplifiers (T-7700B series) receive streaming audio directly from the controller. Paging microphones (T-7702A/M) and intercom stations (T-7700A/AN) establish real-time full-duplex voice paths.
Redundancy options:
