FW2512 - 2-Wire & 4-Wire Detection Solution
Advanced Smoke Sensing • Reliable Fire Detection • Easy Installation
FW2512

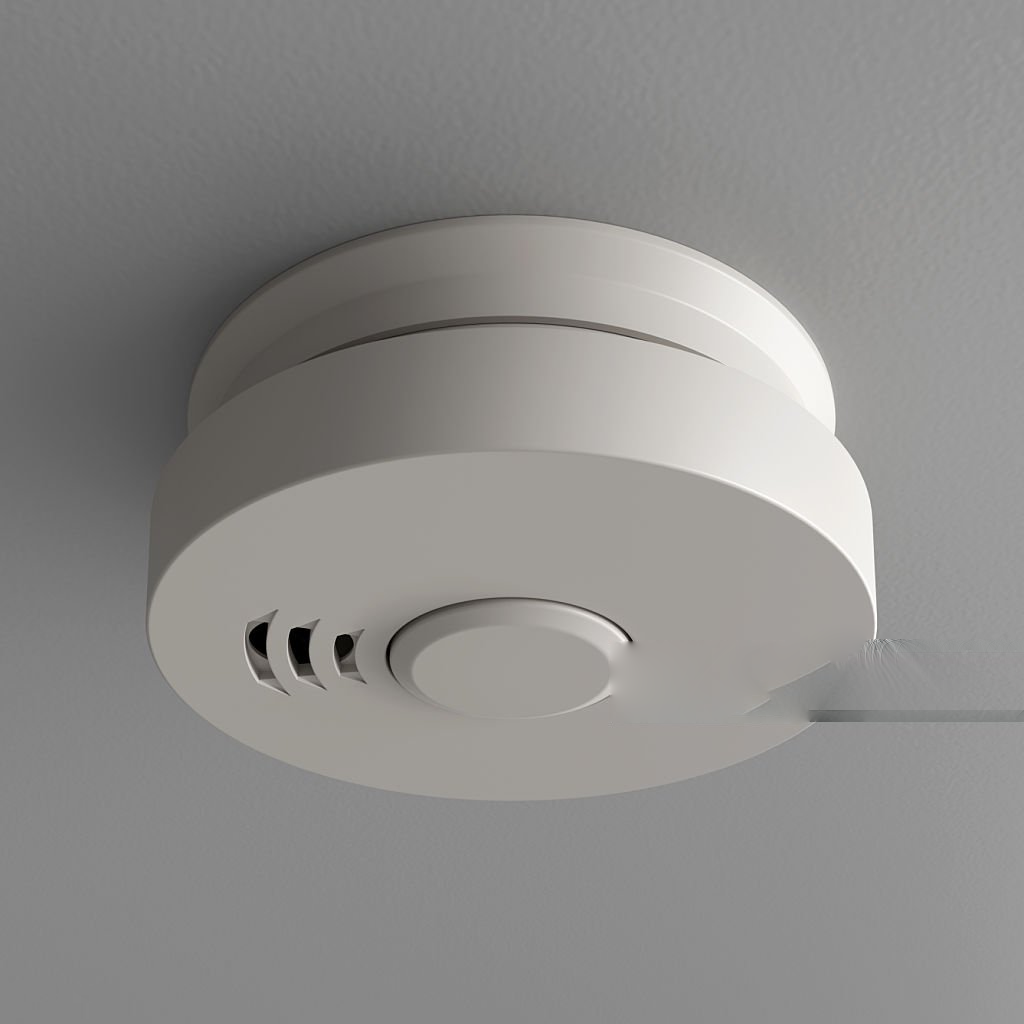

The FW2512 Conventional Smoke Detector utilizes advanced photoelectric sensing technology for reliable smoke detection in commercial, industrial, and residential applications. Compatible with both 2-wire and 4-wire conventional fire alarm systems. Features a low-profile design and easy twist-lock mounting base.
| Model Number | FW2512 |
| Product Name | Conventional Smoke Detector |
| Detection Type | Photoelectric |
| Wiring Configuration | 2-Wire or 4-Wire Selectable |
| Certification | UL 268, EN 54-7 |
| Operating Voltage | 12-30VDC |
| Standby Current | 30μA @ 24VDC |
| Alarm Current | 45mA @ 24VDC |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Dimensions | 4.0" diameter x 1.7" height (102mm x 43mm) |
The FW2512 Conventional Smoke Detector is a photoelectric smoke detector designed for reliable fire detection in conventional (non-addressable) fire alarm systems. It utilizes advanced optical sensing technology to detect visible smoke particles typical of smoldering fires.
Advanced optical chamber for early detection of smoldering fires.
Configurable for both 2-wire and 4-wire conventional systems.
Built-in magnetic test capability for simplified functional testing.
