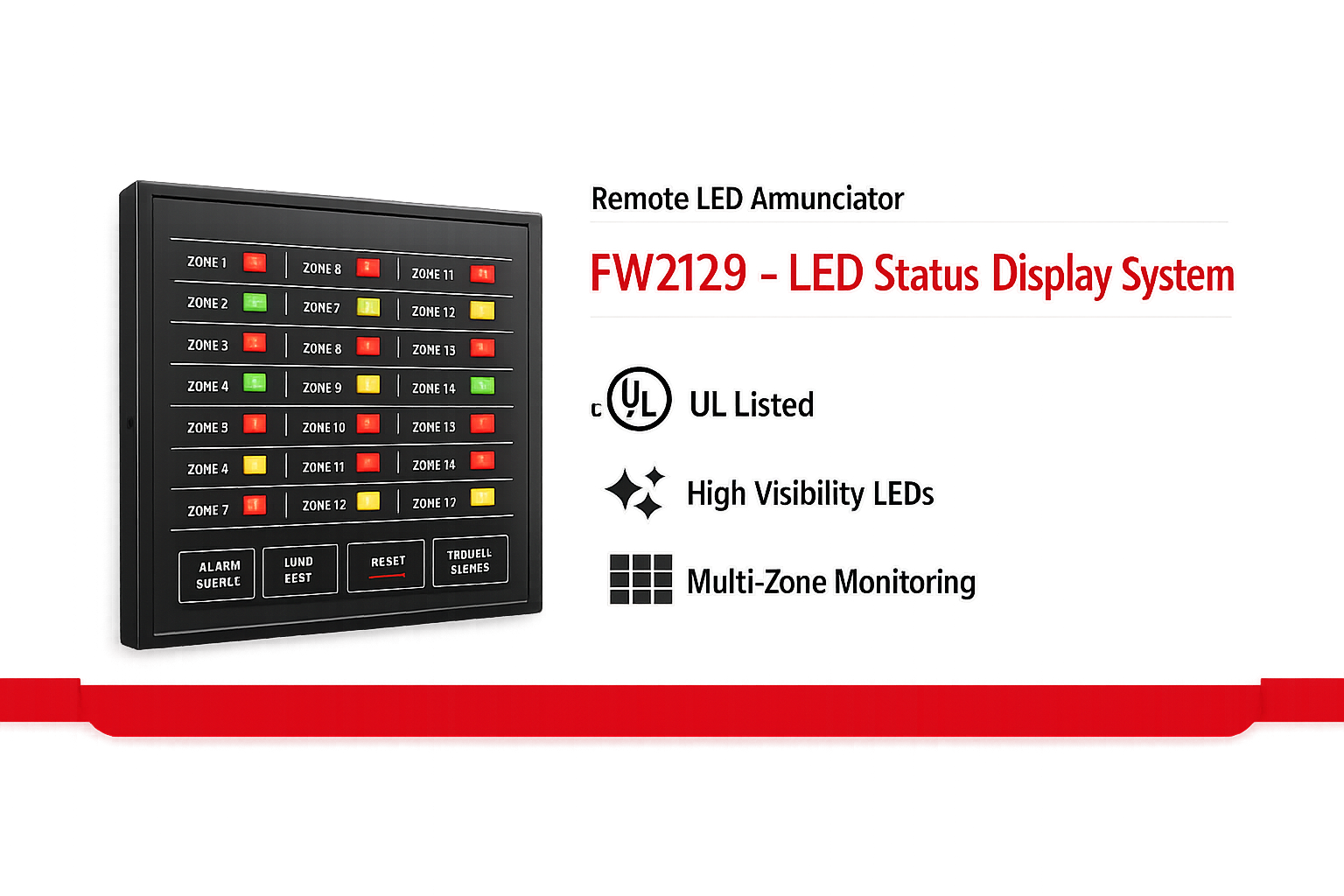

FW2129 - LED Status Display System
UL Listed • High Visibility LEDs • Multi-Zone Monitoring
FW2129
High-performance remote LED annunciator designed for critical life safety applications. Provides clear visual status for fire alarm zones, supervisory signals, and system troubles. Perfect for security command centers, building lobbies, and fire control rooms.
| Model Number | FW2129 |
| LED Colors | Red (Alarm), Yellow (Supervisory), Green (Normal), Amber (Trouble) |
| Zones Supported | Up to 32 Programmable Zones |
| Communication | RS-485, 2-Wire, Up to 4000 ft |
| Power Supply | 24VDC @ 250mA max |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions | 8.5" x 12.5" x 2" (216 x 318 x 51 mm) |
| Enclosure | Metal, Red Powder Coat |
The FW2129 Remote LED Annunciator offers unparalleled visibility for fire alarm system status. Designed to interface with Tongfang Maple Armor series fire alarm control panels, it replicates critical system indicators remotely, enabling security personnel to monitor zones without accessing the main panel.
Instant LED feedback for Alarm, Supervisory, and Trouble conditions per zone.
Simple two-wire connection reduces installation time and errors.
Sunlight-readable indicators with adjustable intensity.
Installation guide: Use #12 screws for backbox, wire according to NFPA 72 standards. All terminals are labeled for zone mapping.
