Intelligent FACP

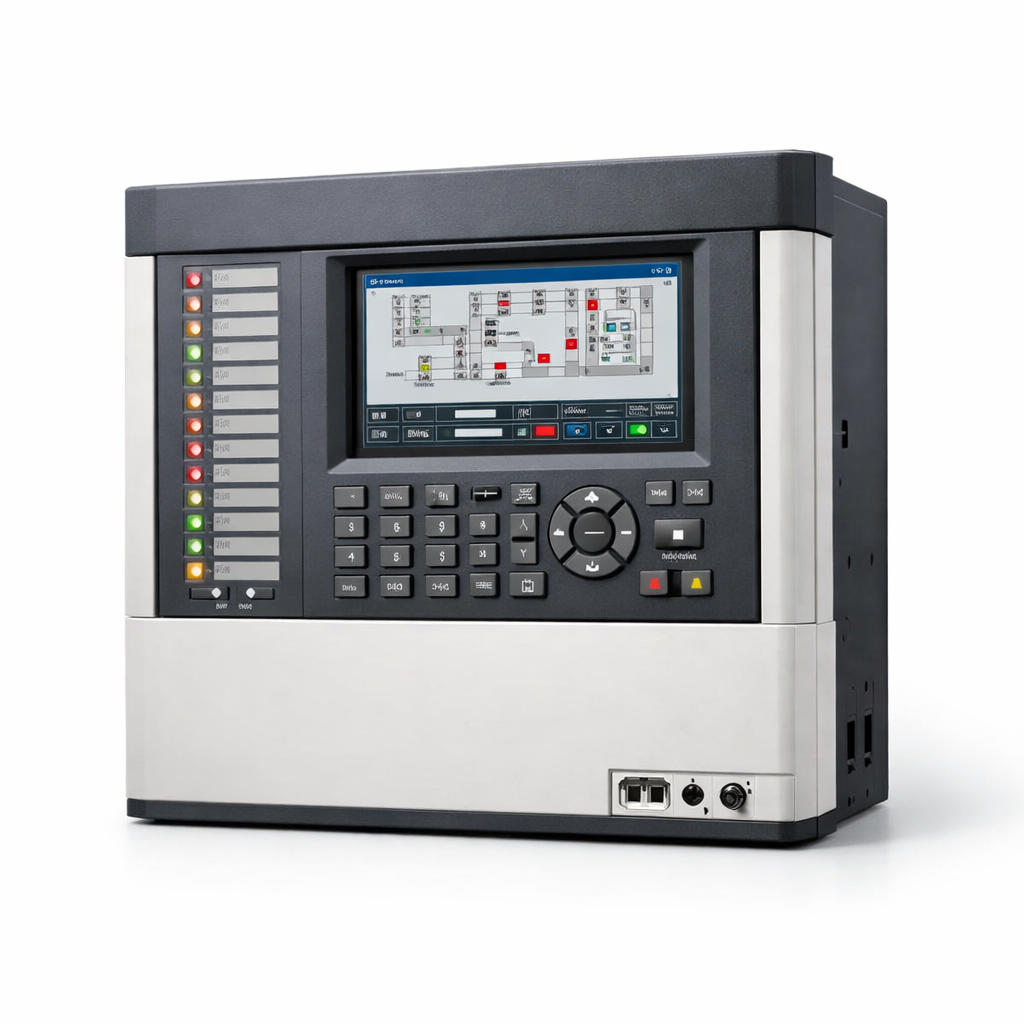

FW2105 - High-Capacity Addressable Fire Alarm Control Panel

UL/ULC Listed • Intelligent Addressing • Network-Ready

UL/ULC Listed

Intelligent FACP

FW2105

UL/ULC Listed
Intelligent
Quality Tested
Easy Install

High-performance fire alarm component designed for modern life safety systems. Part of the Maple Armor 2025 series, providing reliability and code compliance for complex building environments.

Product Specifications

Model NumberFW2105
Product NameIntelligent FACP
CategoryAddressable Fire Alarm Control Panel
CertificationUL 864 9th Edition, ULC S527
ManufacturerMaple Armor / Tongfang
Warranty3-Year Comprehensive
Power Supply120/240VAC, 50/60Hz, Auto-Switching
Battery Backup24VDC, 18-100 AH (Expandable)
Processor32-bit RISC with Dual-Core Architecture
Memory512MB Flash, 256MB RAM
Max Addressable PointsUp to 2,560 Points (Expandable)
Max Loops8 SLC Loops (320 Points/Loop)
Display10.4" Color Touchscreen LCD
Network CapacityUp to 250 Nodes per Network
Communication PortsEthernet (10/100), RS-485, USB
Relay Outputs24 Programmable Relays (Form C)
Aux Power4 x 2.5A @ 24VDC (Supervised)
Dimensions (HxWxD)24" x 20" x 6" (610 x 508 x 152mm)
Operating Temperature0°C to +49°C (32°F to 120°F)
Humidity Range10% to 93% RH non-condensing

Product Overview

The FW2105 (Intelligent FACP) provides industry-leading fire detection and notification capabilities. It is fully compatible with Tongfang BMS architecture and optimized for quick field deployment and simplified maintenance.

UL/ULC Certified

Compliant with UL 864 9th Edition and ULC S527 for highest safety standards.

Intelligent Addressing

True analog addressable system with individual device monitoring and diagnostics.

High-Capacity

Supports up to 2,560 addressable points across 8 signaling line circuits.

Applications
  • High-Rise Office Buildings
  • Hospitals & Healthcare Facilities
  • Universities & Educational Campuses
  • Shopping Malls & Retail Complexes
  • Airport Terminals & Transportation Hubs
  • Industrial Plants & Manufacturing Facilities
Advanced Features

Dual CPU architecture for redundancy

Automatic device mapping and programming

Real-time sensitivity adjustment

Historical event logging (10,000 events)

Multi-language display support

Advanced drift compensation

Waterflow and valve supervisory

Elevator capture and recall

Networking & Integration

Network Architecture
  • Peer-to-Peer Network: Up to 250 Nodes
  • Ethernet TCP/IP for High-Speed Communication
  • RS-485 for Legacy System Integration
  • Fiber Optic Capability for Long-Distance
Communication Protocols
  • BACnet/IP for BMS Integration
  • Modbus TCP/RTU for Industrial Systems
  • SNMP for Network Management
  • HTTPS/SSL for Secure Web Access
Software Integration
Enterprise Management: The FW2105 supports Tongfang BMS Enterprise software for centralized monitoring and control of multiple facilities from a single location.
Remote Monitoring

Web-based interface for real-time status monitoring from any location with internet access.

Mobile Access

Compatible with iOS and Android apps for on-the-go system management and notifications.

Device Compatibility

Addressable Devices
  • Analog Smoke Detectors
  • Heat Detectors (Fixed & ROR)
  • Beam Detectors (Addressable)
  • Multi-Sensor Detectors
  • Addressable Manual Call Points
Control & Notification
  • Addressable Sounders & Strobes
  • Voice Evacuation Systems
  • Addressable Relay Modules
  • Monitor Modules (Conventional)
  • Control Modules (Output)
System Expansion
Loop Cards

Expandable up to 8 SLC loops with plug-in cards.

Network Cards

Add fiber optic or additional network interfaces.

Annunciator Cards

Support for multiple annunciator panels.
