Data concentration and protocol conversion for comprehensive energy monitoring systems
The EMC-GT Series energy gateways are intelligent data concentrators that collect information from multiple meters and sensors, convert between communication protocols, and provide a unified interface to building management systems. Supporting MODBUS, BACnet, and M-Bus protocols, they are the central hub of any comprehensive energy monitoring solution.
| Model | Description | Meters Supported | Communication | Protocols | Power | Action |
|---|---|---|---|---|---|---|

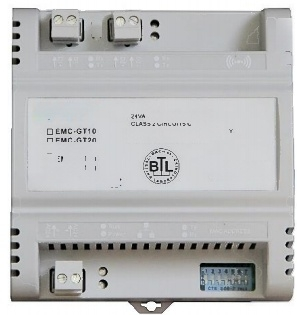

| EMC-GT10 | Compact Energy Gateway | 10 meters | Ethernet, RS485 | MODBUS to BACnet | 24V AC/DC | View |
| EMC-GT20 | Energy Gateway | 20 meters | Ethernet, RS485 | MODBUS to BACnet | 24V AC/DC | View |
| EMC-GT30 | Energy Gateway | 30 meters | Ethernet, RS485 | MODBUS to BACnet | 24V AC/DC | View |
| EMC-GT40 | Energy Gateway | 40 meters | Ethernet, RS485 | MODBUS to BACnet | 24V AC/DC | View |
| EMC-GT80 | High-Capacity Gateway | 80 meters | Ethernet, RS485 | MODBUS to BACnet | 24V AC/DC | View |
| Model | Description | Input Protocol | Output Protocol | Ports | Power | Action |
|---|---|---|---|---|---|---|
| BG-MODBUS | MODBUS to BACnet Gateway | MODBUS RTU/TCP | BACnet MS/TP, BACnet IP | 2 x RS485, 1 x Ethernet | 24V AC/DC | View |
| BR-MODBUS | MODBUS Gateway | MODBUS RTU | MODBUS TCP | 2 x RS485, 1 x Ethernet | 24V AC/DC | View |
| BR-Mbus4 | M-Bus Gateway | M-Bus | MODBUS RTU | 4 x M-Bus, 1 x RS485 | 24V AC/DC | View |
| Model | Description | Channels | Input Type | Output Protocol | Power | Action |
|---|---|---|---|---|---|---|
| EMC-PC4 | 4-Channel Pulse Counter | 4 | Reed switch, Solid state | MODBUS RTU | 24V AC/DC | View |
| EMC-PC8 | 8-Channel Pulse Counter | 8 | Reed switch, Solid state | MODBUS RTU | 24V AC/DC | View |
| EMC-PC8-4G | 8-Channel Pulse Counter with 4G | 8 | Reed switch, Solid state | MODBUS TCP, 4G | 24V AC/DC | View |
| Model | Description | Devices Supported | Communication | Features | Action |
|---|---|---|---|---|---|
| LoRa Gateway | LoRaWAN Gateway | 100+ wireless devices | Ethernet, 4G, Wi-Fi | 8-channel, IP65 enclosure | View |
How energy gateways integrate with meters and BMS
EMC-GT Series gateways collect data from power meters, water meters, gas meters, and BTU meters, then provide unified BACnet or MODBUS communication to building management systems.
Why choose our energy gateways
Collect data from up to 80 meters in a single gateway
MODBUS to BACnet conversion for seamless BMS integration
Onboard data logging with automatic retry on communication loss
Built-in web server for configuration and monitoring
Ideal for various energy management scenarios
Tenant sub-metering aggregation
Multi-building energy monitoring
Centralized utility monitoring
Critical energy infrastructure
Our energy management experts are ready to assist with gateway selection and system design
